Usage / State

State

All state managed by Ocuroot is stored in JSON documents that are organized by Reference.

Reference format

References are a URI-compatible string that serve as a path to a document within Ocuroot state. They are of the form:

[repo]/-/[path]/@[release]/[subpath]#[fragment]
  • [repo]: The URL or alias of a Git repo.
  • [path]: The path to a file within the repo, usually a *.ocu.star file defining a Package.
  • [release]: A release identifier. If blank, the most recent release is implied.
  • [subpath]: A path to a document within the release, such as a deployment to a specific environment.
  • [fragment]: An optional path to a field within the document.

For example, the following ref would refer to the container image for the first Release of the "frontend" Package in an example repo:

github.com/ocuroot/example/-/frontend/release.ocu.star/@1/call/build#output/image

State vs. Intent

Intent References are denoted by the use of + instead of @ for the Release. So the below ref would refer to the desired state for deploying the "frontend" Package to the "production" Environment.

github.com/ocuroot/example/-/frontend/release.ocu.star/+/deploy/production

All manual changes to state must be made by first modifying intent. Ocuroot will then identify the appropriate actions to take to apply this intent to current state.

State Storage

Details of where state is to be stored should be set in your repo.ocu.star file. You can use the same store for both state and intent, or separate stores to help manage access. Typically, the state store should only be modified by Ocuroot itself, while the intent store can be modified by users as they see fit.

Ocuroot supports both filesystem and git backends for state storage. Typically, you would use the filesystem backend for testing your Ocuroot configuration, and the git backend to share state among your team and CI system.

To configure a filesystem backend:

store.set(
    store.fs(".store/state"),
    intent=store.fs(".store/intent"),
)

The paths provided are relative to the location of the repo.ocu.star file.

To configure a git backend:

store.set(
    store.git("https://github.com/example/ocuroot-state.git", branch="state"),
    intent=store.git("https://github.com/example/ocuroot-intent.git", branch="intent"),
)

Working with state

State can be queried and manipulated using the ocuroot state commands. They are summarized here, but you can also run ocuroot state --help for more information.

ocuroot state get

The command ocuroot state get does what it says on the tin, it retrives the document at a specific ref.

Example:

$ ocuroot state get github.com/ocuroot/ocuroot/-/release.ocu.star/@/call/build_darwin_amd64
{
  "entrypoint": "github.com/ocuroot/ocuroot/-/release.ocu.star/@8/call/build_darwin_amd64/1/functions/1",
  "output": {
    "bucket_path": "ocuroot_binaries:client-binaries/ocuroot/0.3.9-3/darwin-amd64",
    "download_url": "https://downloads.ocuroot.com/ocuroot/0.3.9-3/darwin-amd64/ocuroot"
  },
  "release": "github.com/ocuroot/ocuroot/-/release.ocu.star/@8",
}

$ ocuroot state get github.com/ocuroot/ocuroot/-/release.ocu.star/@/call/build_darwin_amd64#output/download_url
"https://downloads.ocuroot.com/ocuroot/0.3.9-3/darwin-amd64/ocuroot"

ocuroot state match

The match command lets you search for refs that match a specific glob pattern.

For example, to find all deployments to the production environment:

$ ocuroot state match "**/deploy/production"

ocuroot state view

The view command starts a web UI for navigating Ocuroot state.

By default, the UI is hosted at http://localhost:3000.

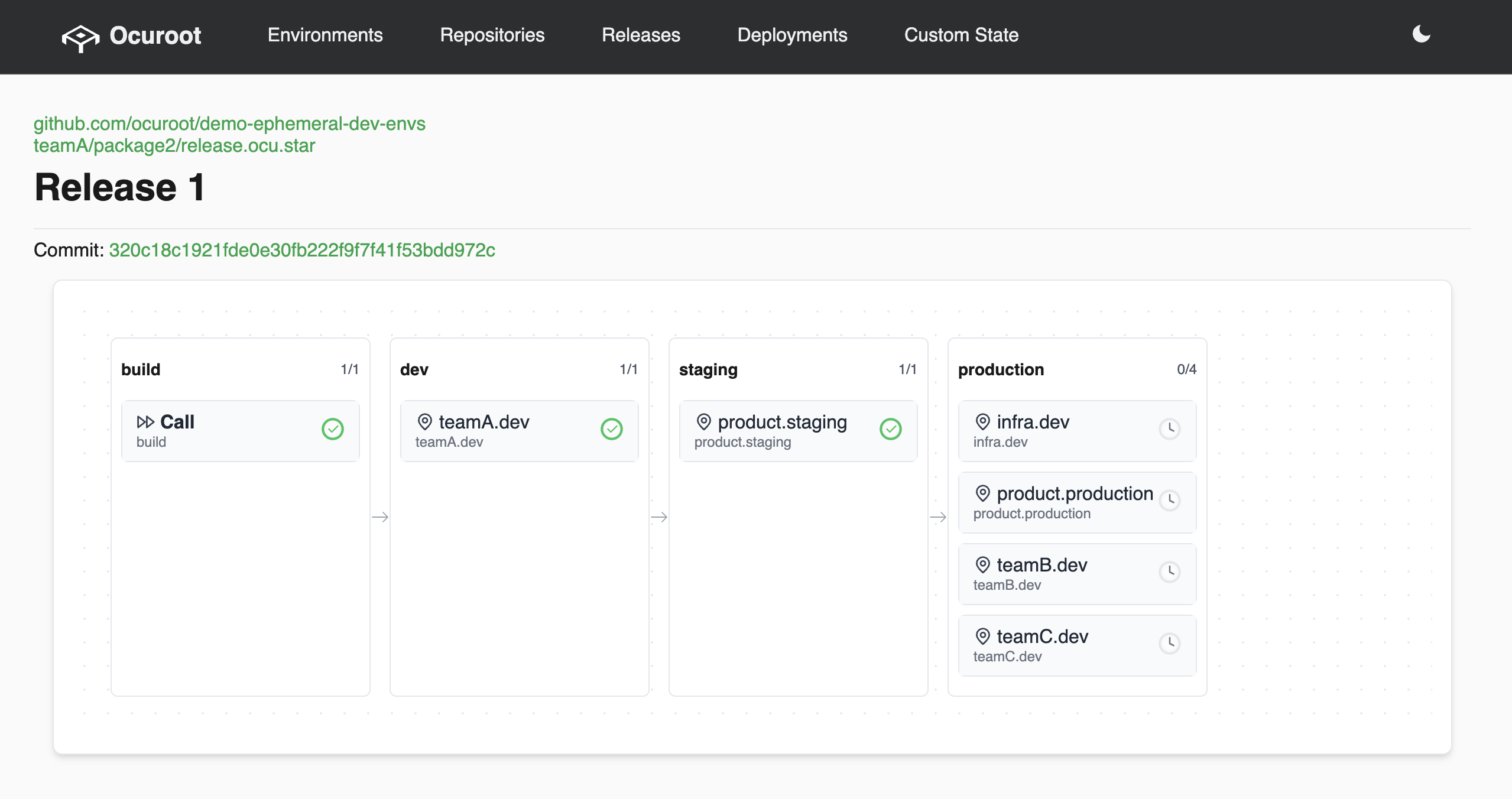

The state UI showing a release

ocuroot state set

The set command allows you to set the content of the document at a specific ref. The ref must be an intent ref (e.g. repo/-/release.ocu.star/+/custom/approve), which can be synchronized to state via the ocuroot state apply or ocuroot work any commands.

ocuroot state delete

Similar to ocuroot state set, the delete command allows you to delete the document at a specific intent ref.

Types of state

Environments

Environments are not associated with Repos, and are global to your state store.

An Environment ref is of the form:

@/environment/[name]

An Environment document must contain the same name as the ref, and a map of attributes.

You can create an environment from the command-line by setting the intent using the JSON format:

$ ocuroot state set -f=json "+/environment/production" '{"attributes": {"type": "prod"},"name": "production"}'

Once this intent is applied, the environment will be created and populated with any appropriate deployments.

You can also delete an environment with ocuroot state delete, which will destroy any deployments before removing the environment from state.

Releases

Releases represent a point-in-time snapshot of a particular package and how it should be built and deployed.

A ref for a Release specifies its repo, path and release. For example:

github.com/ocuroot/example/-/path/to/package/release.ocu.star/@1

The document at this ref defines the release process defined in the file path/to/package/release.ocu.star in the repo github.com/ocuroot/example at release 1. Release identifiers are monotonically increasing integers.

The commit hash for a specific release can be found in the commit subpath for the release:

github.com/ocuroot/example/-/path/to/package/release.ocu.star/@1/commit/[hash]

The hash is stored in the ref itself for quick lookup. This allows you to look up the commit for a specific release:

$ ocuroot state match github.com/ocuroot/example/-/release.ocu.star/@1/commit/*

Or even find all releases at a specific commit:

$ ocuroot state match github.com/ocuroot/example/-/**/@*/commit/fa56a23554a75a7ab334f841c5f61f952e52930c
github.com/ocuroot/example/-/frontend/release.ocu.star/@1/commit/fa56a23554a75a7ab334f841c5f61f952e52930c
github.com/ocuroot/example/-/backend/release.ocu.star/@1/commit/fa56a23554a75a7ab334f841c5f61f952e52930c
github.com/ocuroot/example/-/frontend/release.ocu.star/@2/commit/fa56a23554a75a7ab334f841c5f61f952e52930c

Note that there can be multiple releases at a single commit.

Work

Work within a Release is represented as either Calls or Deployments below the Release Ref.

A Call represents a one-off step within a Release, like a build or test. Call refs are of the form:

github.com/ocuroot/example/-/path/to/package/release.ocu.star/@1/call/[name]

A Deployment represents a release of a package to a specific environment. Deployment refs are of the form:

github.com/ocuroot/example/-/path/to/package/release.ocu.star/@1/deploy/[environment]

Below Call and Deployment Refs will be details of each execution of the work. These are numbered sequentially and will have a single status ref associated with them to make it easy to match against work with a specific result.

For example:

github.com/ocuroot/example/-/release.ocu.star/@1/call/build/1/status/complete

Shows that the first execution of the build call in release 1 of the package at release.ocu.star was completed successfully.

The logs for this execution are also available at:

github.com/ocuroot/example/-/release.ocu.star/@1/call/build/1/logs

Custom State

Custom State provides a means to create and manage free-form data within your state. This can be useful for requiring human approval to proceed in a Release, changing configuration of a deployment without having to create a brand-new release or tracking information about teams.

Custom State may be stored globally:

@/custom/[name]

Or scoped to a specific release:

github.com/ocuroot/example/-/path/to/package/release.ocu.star/@1/custom/[name]
